Abstract class for a matrix, used to abstract away all the data storage and access and provide common implementation of the algorithms. More...

#include <inmost_dense.h>

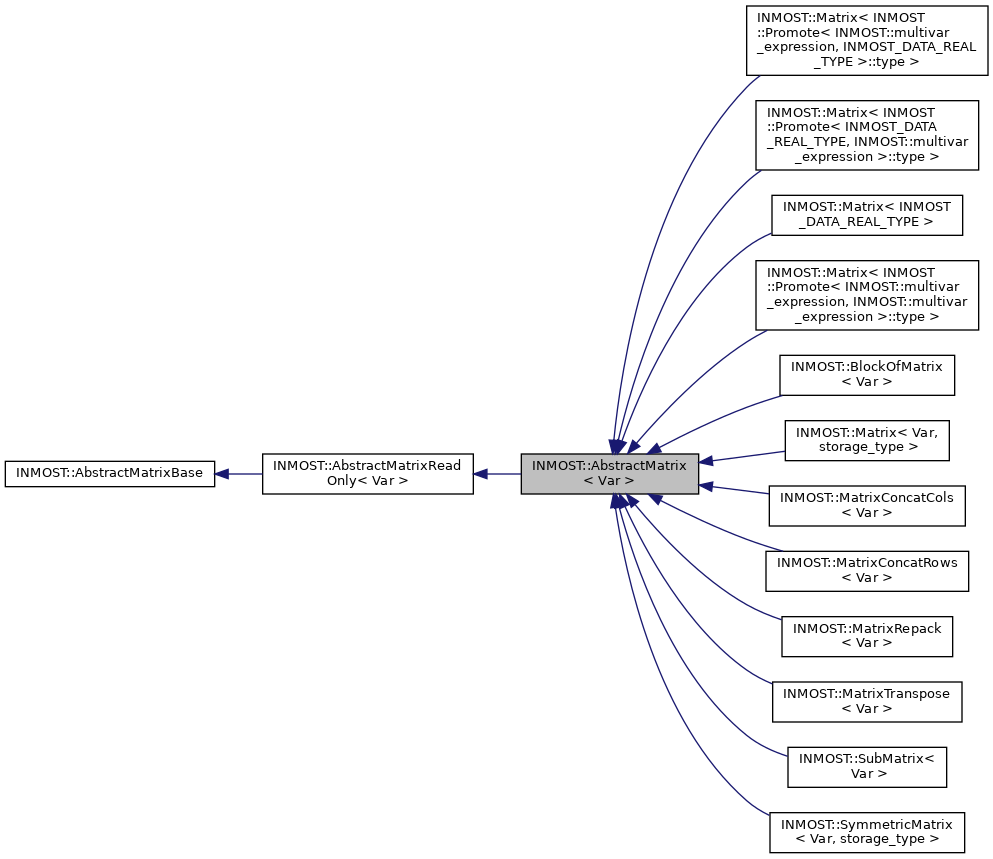

Inheritance diagram for INMOST::AbstractMatrix< Var >:

[legend]

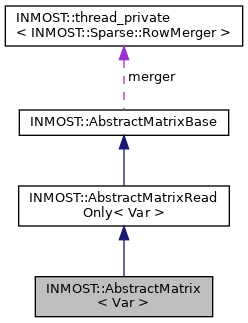

Collaboration diagram for INMOST::AbstractMatrix< Var >:

[legend]

Public Types
typedef AbstractMatrixReadOnly< Var >::enumerator	enumerator

Public Types inherited from INMOST::AbstractMatrixReadOnly< Var >
typedef unsigned	enumerator

Public Member Functions
	AbstractMatrix ()
	Construct empty matrix.

AbstractMatrix &	operator= (AbstractMatrix const &other)
	Assign matrix of the same type. More...

template<typename typeB >
AbstractMatrix &	operator= (AbstractMatrixReadOnly< typeB > const &other)
	Assign matrix of another type. More...

AbstractMatrix &	operator= (Var const &b)
	Assign value to all entries of the matrix. More...

virtual Var &	operator() (enumerator i, enumerator j)=0
	Access element of the matrix by row and column indices. More...

virtual const Var &	get (enumerator i, enumerator j) const =0
	Access element of the matrix by row and column indices. More...

virtual void	Resize (enumerator rows, enumerator cols)=0
	Resize the matrix into different size. More...

void	Zero ()
	Set all the elements of the matrix to zero.

virtual void	Swap (AbstractMatrix< Var > &b)
	Exchange contents of two matrices.

template<typename typeB >
AbstractMatrix &	operator-= (const AbstractMatrixReadOnly< typeB > &other)
	Subtract a matrix and store result in the current. More...

template<typename typeB >
AbstractMatrix &	operator-= (const AbstractMatrix< typeB > &other)
	Subtract a matrix and store result in the current. More...

template<typename typeB >
AbstractMatrix &	operator+= (const AbstractMatrixReadOnly< typeB > &other)
	Add a matrix and store result in the current. More...

template<typename typeB >
AbstractMatrix &	operator+= (const AbstractMatrix< typeB > &other)
	Add a matrix and store result in the current. More...

template<typename typeB >
AbstractMatrix &	operator*= (const AbstractMatrixReadOnly< typeB > &B)
	Multiply matrix with another matrix in-place. More...

template<typename typeB >
AbstractMatrix &	operator*= (typeB coef)
	Multiply the matrix by the coefficient of the same type and store the result. More...

template<typename typeB >
AbstractMatrix &	operator/= (typeB coef)
	Divide the matrix by the coefficient of the same type and store the result. More...

SubMatrix< Var >	operator() (enumerator first_row, enumerator last_row, enumerator first_col, enumerator last_col)
	Extract submatrix of a matrix for in-place manipulation of elements. More...

BlockOfMatrix< Var >	BlockOf (enumerator nrows, enumerator ncols, enumerator offset_row, enumerator offset_col)
	Define matrix as a part of a matrix of larger size with in-place manipulation of elements. More...

MatrixTranspose< Var >	Transpose ()
	Transpose the current matrix with access to elements. More...

MatrixRepack< Var >	Repack (enumerator rows, enumerator cols)
	Change representation of the matrix into matrix of another size. More...

MatrixConcatCols< Var >	ConcatCols (AbstractMatrix< Var > &B)
	Concatenate B matrix as columns of current matrix. More...

MatrixConcatRows< Var >	ConcatRows (AbstractMatrix< Var > &B)
	Concatenate B matrix as rows of current matrix. More...

bool	CheckNans () const
	Check all matrix entries for not a number. More...

bool	CheckInfs () const
	Check all matrix entries for infinity. More...

bool	CheckNansInfs () const
	Check all matrix entries for not a number and infinity. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	Transform (const AbstractMatrix< typeB > &other) const
	Transformation matrix from current vector to provided vector using shortest arc rotation. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	Transform (const AbstractMatrixReadOnly< typeB > &other) const
	Transformation matrix from current vector to provided vector using shortest arc rotation. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	CrossProduct (const AbstractMatrix< typeB > &other) const
	Cross-product operation for a vector. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	CrossProduct (const AbstractMatrixReadOnly< typeB > &other) const
	Cross-product operation for a vector. More...

template<typename typeB >
Promote< Var, typeB >::type	DotProduct (const AbstractMatrix< typeB > &other) const
	Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix. More...

template<typename typeB >
Promote< Var, typeB >::type	DotProduct (const AbstractMatrixReadOnly< typeB > &other) const
	Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix. More...

template<typename typeB >
Promote< Var, typeB >::type	operator^ (const AbstractMatrix< typeB > &other) const
	Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix. More...

template<typename typeB >
Promote< Var, typeB >::type	operator^ (const AbstractMatrixReadOnly< typeB > &other) const
	Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix. More...

SelfPromote< Var >::type	FrobeniusNorm () const
	Computes frobenious norm of the matrix. More...

Var	MaxNorm () const
	Computes maximum absolute value of the matrix. More...

Var	Trace () const
	Calculate sum of the diagonal elements of the matrix. More...

void	Print (INMOST_DATA_REAL_TYPE threshold=1.0e-10, std::ostream &sout=std::cout) const
	Output matrix to screen. More...

bool	isSymmetric (double eps=1.0e-7) const
	Check if the matrix is symmetric. More...

void	MPT (INMOST_DATA_ENUM_TYPE Perm, INMOST_DATA_REAL_TYPE SL=NULL, INMOST_DATA_REAL_TYPE *SR=NULL) const
	Maximum product transversal. More...

__INLINE INMOST_DATA_ENUM_TYPE	GetMatrixCount () const
	Retrieve number of indices of derivatives.

virtual	~AbstractMatrix ()
	Destructor.

template<typename typeB >
AbstractMatrix< Var > &	operator-= (const AbstractMatrix< typeB > &other)

template<typename typeB >
AbstractMatrix< Var > &	operator-= (const AbstractMatrixReadOnly< typeB > &other)

template<typename typeB >
AbstractMatrix< Var > &	operator+= (const AbstractMatrix< typeB > &other)

template<typename typeB >
AbstractMatrix< Var > &	operator+= (const AbstractMatrixReadOnly< typeB > &other)

template<typename typeB >
AbstractMatrix< Var > &	*operator=** (const AbstractMatrixReadOnly< typeB > &B)

template<typename typeB >
AbstractMatrix< Var > &	*operator=** (typeB coef)

template<typename typeB >
AbstractMatrix< Var > &	operator/= (typeB coef)

Public Member Functions inherited from INMOST::AbstractMatrixReadOnly< Var >
virtual enumerator	Rows () const =0
	Obtain number of rows. More...

virtual enumerator	Cols () const =0
	Obtain number of columns. More...

virtual Var	compute (enumerator i, enumerator j) const =0
	Compute element of the matrix by row and column indices without right to change the element. More...

bool	CheckNans () const
	Check all matrix entries for not a number. More...

bool	CheckInfs () const
	Check all matrix entries for infinity. More...

bool	CheckNansInfs () const
	Check all matrix entries for not a number and infinity. More...

Var	Det () const
	Matrix determinant.

bool	SVD (AbstractMatrix< Var > &U, AbstractMatrix< Var > &Sigma, AbstractMatrix< Var > &V, bool order_singular_values=true, bool nonnegative=true) const
	Singular value decomposition. More...

bool	cSVD (AbstractMatrix< Var > &U, AbstractMatrix< Var > &Sigma, AbstractMatrix< Var > &V) const
	Singular value decomposition. More...

ConstMatrixTranspose< Var >	Transpose () const
	Transpose current matrix. More...

ConstMatrixConjugateTranspose< Var >	ConjugateTranspose () const
	Transpose and conjugate current matrix. More...

ConstMatrixConjugate< Var >	Conjugate () const
	Conjugate current matrix. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	CrossProduct (const AbstractMatrixReadOnly< typeB > &other) const
	Cross-product operation for a vector. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	Transform (const AbstractMatrixReadOnly< typeB > &other) const
	Transformation matrix from current vector to provided vector using shortest arc rotation. More...

template<typename typeB >
MatrixDifference< Var, typeB >	operator- (const AbstractMatrixReadOnly< typeB > &other) const
	Subtract a matrix. More...

template<typename typeB >
MatrixSum< Var, typeB >	operator+ (const AbstractMatrixReadOnly< typeB > &other) const
	Add a matrix. More...

template<typename typeB >
MatrixMul< Var, typeB, typename Promote< Var, typeB >::type >	operator* (const AbstractMatrixReadOnly< typeB > &other) const
	Multiply the matrix by another matrix. More...

MatrixUnaryMinus< Var >	operator- () const
	Unary minus. Change sign of each element of the matrix.

template<typename typeB >
KroneckerProduct< Var, typeB >	Kronecker (const AbstractMatrixReadOnly< typeB > &other) const
	Kronecker product, latex symbol \otimes. More...

Matrix< Var >	Invert (int *ierr=NULL) const
	Inverts matrix using Crout-LU decomposition with full pivoting for maximum element. More...

Matrix< Var >	CholeskyInvert (int *ierr=NULL) const
	Inverts symmetric positive-definite matrix using Cholesky decomposition.

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	Solve (const AbstractMatrixReadOnly< typeB > &B, int *ierr=NULL) const
	Finds X in A*X=B, where A and B are general matrices. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	CholeskySolve (const AbstractMatrixReadOnly< typeB > &B, int *ierr=NULL) const
	Finds X in A*X=B, where A is a square symmetric positive definite matrix. More...

Var	Trace () const
	Calculate sum of the diagonal elements of the matrix. More...

void	Print (INMOST_DATA_REAL_TYPE threshold=1.0e-10, std::ostream &sout=std::cout) const
	Output matrix to screen. More...

bool	isSymmetric (double eps=1.0e-7) const
	Check if the matrix is symmetric. More...

template<typename typeB >
Promote< Var, typeB >::type	DotProduct (const AbstractMatrixReadOnly< typeB > &other) const
	Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix. More...

template<typename typeB >
Promote< Var, typeB >::type	operator^ (const AbstractMatrixReadOnly< typeB > &other) const
	Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix. More...

SelfPromote< Var >::type	FrobeniusNorm () const
	Computes frobenius norm of the matrix. More...

Var	MaxNorm () const
	Computes maximum absolute value of the matrix. More...

Matrix< Var >	PseudoInvert (INMOST_DATA_REAL_TYPE tol=0, int *ierr=NULL) const
	Calculates Moore-Penrose pseudo-inverse of the matrix. More...

Matrix< Var >	Power (INMOST_DATA_REAL_TYPE n, int *ierr=NULL) const
	Calcuate A^n, where n is some real value. More...

Matrix< Var >	Root (INMOST_DATA_ENUM_TYPE iter=25, INMOST_DATA_REAL_TYPE tol=1.0e-7, int *ierr=NULL) const
	Calculate square root of A matrix by Babylonian method. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	PseudoSolve (const AbstractMatrixReadOnly< typeB > &B, INMOST_DATA_REAL_TYPE tol=0, int *ierr=NULL) const
	Solves the system of equations of the form A*X=B, with A and B matrices. More...

Matrix< Var >	ExtractSubMatrix (enumerator ibeg, enumerator iend, enumerator jbeg, enumerator jend) const
	Extract submatrix of a matrix. More...

ConstMatrixRepack< Var >	Repack (enumerator rows, enumerator cols) const
	Change representation of the matrix into matrix of another size. More...

ConstSubMatrix< Var >	operator() (enumerator first_row, enumerator last_row, enumerator first_col, enumerator last_col) const
	Extract submatrix of a matrix for in-place manipulation of elements. More...

ConstBlockOfMatrix< Var >	BlockOf (enumerator nrows, enumerator ncols, enumerator offset_row, enumerator offset_col) const
	Define matrix as a part of a matrix of larger size with in-place manipulation of elements. More...

template<typename typeB >
MatrixMulCoef< Var, typeB, typename Promote< Var, typeB >::type >	operator* (const typeB &coef) const
	Multiply the matrix by a coefficient. More...

template<class A >
MatrixMulShellCoef< Var, shell_expression< A >, typename Promote< Var, variable >::type >	operator* (shell_expression< A > const &coef) const
	Multiply the matrix by a coefficient. More...

template<typename typeB >
MatrixDivCoef< Var, typeB, typename Promote< Var, typeB >::type >	operator/ (const typeB &coef) const
	Divide the matrix by a coefficient of a different type. More...

template<class A >
MatrixDivShellCoef< Var, shell_expression< A >, typename Promote< Var, variable >::type >	operator/ (shell_expression< A > const &coef) const
	Divide the matrix by a coefficient of a different type. More...

template<typename typeB >
Matrix< typename Promote< Var, typeB >::type >	operator/ (const AbstractMatrixReadOnly< typeB > &other) const
	Performs B^{-1}*A, multiplication by inverse matrix from left. More...

ConstMatrixConcatCols< Var >	ConcatCols (const AbstractMatrixReadOnly< Var > &B) const
	Concatenate B matrix as columns of current matrix. More...

template<typename VarB >
ConstMatrixConcatCols2< Var, VarB, typename Promote< Var, VarB >::type >	ConcatCols (const AbstractMatrixReadOnly< VarB > &B) const
	Concatenate B matrix as columns of current matrix. More...

ConstMatrixConcatRows< Var >	ConcatRows (const AbstractMatrixReadOnly< Var > &B) const
	Concatenate B matrix as rows of current matrix. More...

template<typename VarB >
ConstMatrixConcatRows2< Var, VarB, typename Promote< Var, VarB >::type >	ConcatRows (const AbstractMatrixReadOnly< VarB > &B) const
	Concatenate B matrix as rows of current matrix. More...

virtual	~AbstractMatrixReadOnly ()
	Destructor.

__INLINE Matrix< Promote< variable, variable >::type >	CholeskySolve (const AbstractMatrixReadOnly< variable > &B, int *ierr) const

__INLINE Matrix< Promote< INMOST_DATA_REAL_TYPE, variable >::type >	CholeskySolve (const AbstractMatrixReadOnly< variable > &B, int *ierr) const

__INLINE Matrix< Promote< variable, INMOST_DATA_REAL_TYPE >::type >	CholeskySolve (const AbstractMatrixReadOnly< INMOST_DATA_REAL_TYPE > &B, int *ierr) const

Additional Inherited Members
Static Protected Attributes inherited from INMOST::AbstractMatrixBase
static thread_private< Sparse::RowMerger >	merger

Detailed Description

template<typename Var>
class INMOST::AbstractMatrix< Var >

Abstract class for a matrix, used to abstract away all the data storage and access and provide common implementation of the algorithms.

Definition at line 646 of file inmost_dense.h.

Member Function Documentation

◆ BlockOf()

template<typename Var >

BlockOfMatrix< Var > INMOST::AbstractMatrix< Var >::BlockOf	(	enumerator	nrows,
		enumerator	ncols,
		enumerator	offset_row,
		enumerator	offset_col
	)

Define matrix as a part of a matrix of larger size with in-place manipulation of elements.

Let A = {a_ij}, i in [0,n), j in [0,m) be original matrix. Then the method returns B = {a_ij}, if i in [offset_row,offset_row+n), and j in [offset_col,offset_col+m) and B = {0} otherwise.

Parameters

nrows	Number of rows in larger matrix.
ncols	Number of columns in larger matrix.
offset_row	Offset for row number.
offset_col	Offset for column number.

Returns: Submatrix of the original matrix.

Definition at line 4883 of file inmost_dense.h.

◆ CheckInfs()

template<typename Var >

bool INMOST::AbstractMatrix< Var >::CheckInfs ( ) const

inline

Check all matrix entries for infinity.

Also checks derivatives for matrices of variables.

Definition at line 827 of file inmost_dense.h.

◆ CheckNans()

template<typename Var >

bool INMOST::AbstractMatrix< Var >::CheckNans ( ) const

inline

Check all matrix entries for not a number.

Also checks derivatives for matrices of variables.

Definition at line 818 of file inmost_dense.h.

◆ CheckNansInfs()

template<typename Var >

bool INMOST::AbstractMatrix< Var >::CheckNansInfs ( ) const

inline

Check all matrix entries for not a number and infinity.

Also checks derivatives for matrices of variables.

Definition at line 836 of file inmost_dense.h.

◆ ConcatCols()

template<typename Var >

MatrixConcatCols<Var> INMOST::AbstractMatrix< Var >::ConcatCols ( AbstractMatrix< Var > & B )

inline

Concatenate B matrix as columns of current matrix.

Assumes that number of rows of current matrix is equal to number of rows of B matrix.

Parameters

B	Matrix to be concatenated to current matrix.

Returns: Result of concatenation of current matrix and parameter.

See also: Matrix::ConcatRows

Definition at line 808 of file inmost_dense.h.

◆ ConcatRows()

template<typename Var >

MatrixConcatRows<Var> INMOST::AbstractMatrix< Var >::ConcatRows ( AbstractMatrix< Var > & B )

inline

Concatenate B matrix as rows of current matrix.

Assumes that number of colums of current matrix is equal to number of columns of B matrix.

Parameters

B	Matrix to be concatenated to current matrix.

Returns: Result of concatenation of current matrix and parameter.

See also: Matrix::ConcatCols

Definition at line 815 of file inmost_dense.h.

◆ CrossProduct() [1/2]

template<typename Var >

template<typename typeB >

Matrix< typename Promote< Var, typeB >::type > INMOST::AbstractMatrix< Var >::CrossProduct ( const AbstractMatrix< typeB > & other ) const

Cross-product operation for a vector.

Both right hand side and left hand side should be a vector

Parameters

other The right hand side of cross product.

Returns: The cross product of current and right hand side vector.

Warning: Works for 3x1 vector and 3xm m-vectors as right hand side.

Definition at line 3696 of file inmost_dense.h.

◆ CrossProduct() [2/2]

template<typename Var >

template<typename typeB >

Matrix< typename Promote< Var, typeB >::type > INMOST::AbstractMatrix< Var >::CrossProduct ( const AbstractMatrixReadOnly< typeB > & other ) const

Cross-product operation for a vector.

Both right hand side and left hand side should be a vector

Parameters

other The right hand side of cross product.

Returns: The cross product of current and right hand side vector.

Warning: Works for 3x1 vector and 3xm m-vectors as right hand side.

Definition at line 3715 of file inmost_dense.h.

◆ DotProduct() [1/2]

template<typename Var >

template<typename typeB >

Promote<Var, typeB>::type INMOST::AbstractMatrix< Var >::DotProduct ( const AbstractMatrix< typeB > & other ) const

inline

Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix.

Parameters

other Provided matrix.

Returns: Dot product of two matrices.

Definition at line 879 of file inmost_dense.h.

◆ DotProduct() [2/2]

template<typename Var >

template<typename typeB >

Promote<Var, typeB>::type INMOST::AbstractMatrix< Var >::DotProduct ( const AbstractMatrixReadOnly< typeB > & other ) const

inline

Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix.

Parameters

other Provided matrix.

Returns: Dot product of two matrices.

Definition at line 895 of file inmost_dense.h.

◆ FrobeniusNorm()

template<typename Var >

SelfPromote<Var>::type INMOST::AbstractMatrix< Var >::FrobeniusNorm ( ) const

inline

Computes frobenious norm of the matrix.

Returns: Frobenius norm of the matrix.

Definition at line 925 of file inmost_dense.h.

◆ get()

template<typename Var >

virtual const Var& INMOST::AbstractMatrix< Var >::get	(	enumerator	i,
		enumerator	j
	)		const

pure virtual

Access element of the matrix by row and column indices.

Parameters

i	Column index.
j	Row index.

Returns: Reference to constant element.

Implemented in INMOST::MatrixMul< variable, variable, Promote< variable, variable >::type >, INMOST::MatrixMul< variable, INMOST_DATA_REAL_TYPE, Promote< variable, INMOST_DATA_REAL_TYPE >::type >, INMOST::MatrixMul< INMOST_DATA_REAL_TYPE, variable, Promote< INMOST_DATA_REAL_TYPE, variable >::type >, INMOST::MatrixRepack< Var >, INMOST::MatrixConcatCols< Var >, INMOST::MatrixConcatRows< Var >, INMOST::MatrixTranspose< Var >, INMOST::BlockOfMatrix< Var >, INMOST::SubMatrix< Var >, INMOST::Matrix< Var, storage_type >, INMOST::Matrix< INMOST::Promote< INMOST::multivar_expression, INMOST_DATA_REAL_TYPE >::type >, INMOST::Matrix< VarR >, INMOST::Matrix< INMOST::Promote< INMOST_DATA_REAL_TYPE, INMOST::multivar_expression >::type >, INMOST::Matrix< INMOST_DATA_REAL_TYPE >, INMOST::Matrix< INMOST::Promote< INMOST::multivar_expression, INMOST::multivar_expression >::type >, and INMOST::SymmetricMatrix< Var, storage_type >.

◆ isSymmetric()

template<typename Var >

bool INMOST::AbstractMatrix< Var >::isSymmetric ( double eps = 1.0e-7 ) const

inline

Check if the matrix is symmetric.

Returns: Returns true if the matrix is symmetric, otherwise false.

Definition at line 977 of file inmost_dense.h.

◆ MaxNorm()

template<typename Var >

Var INMOST::AbstractMatrix< Var >::MaxNorm ( ) const

inline

Computes maximum absolute value of the matrix.

Returns: Maximum norm of the matrix.

Definition at line 935 of file inmost_dense.h.

◆ MPT()

template<typename Var >

void INMOST::AbstractMatrix< Var >::MPT	(	INMOST_DATA_ENUM_TYPE *	Perm,
		INMOST_DATA_REAL_TYPE *	SL = `NULL`,
		INMOST_DATA_REAL_TYPE *	SR = `NULL`
	)		const

Maximum product transversal.

Computes unsymmetric reordering that maximizes product on diagonal. Returns reordering matrix P and scaling matrix S that transforms matrix into I-dominant matrix.

Parameters

Perm	Array for reordering, size of columns of the matrix.
SL	Diagonal for rescaling matrix from left, size of columns of the matrix.
SR	Diagonal for rescaling matrix from right, size of rows of the matrix.

Todo:

Test rescaling.
Test on non-square matrices.

Definition at line 4986 of file inmost_dense.h.

◆ operator()() [1/2]

template<typename Var >

SubMatrix< Var > INMOST::AbstractMatrix< Var >::operator()	(	enumerator	first_row,
		enumerator	last_row,
		enumerator	first_col,
		enumerator	last_col
	)

Extract submatrix of a matrix for in-place manipulation of elements.

Let A = {a_ij}, i in [0,n), j in [0,m) be original matrix. Then the method returns B = {a_ij}, i in [ibeg,iend), and j in [jbeg,jend).

Parameters

first_row	Starting row in the original matrix.
last_row	Last row (excluded) in the original matrix.
first_col	Starting column in the original matrix.
last_col	Last column (excluded) in the original matrix.

Returns: Submatrix of the original matrix.

Definition at line 4872 of file inmost_dense.h.

◆ operator()() [2/2]

template<typename Var >

virtual Var& INMOST::AbstractMatrix< Var >::operator()	(	enumerator	i,
		enumerator	j
	)

pure virtual

Access element of the matrix by row and column indices.

Parameters

i	Column index.
j	Row index.

Returns: Reference to element.

Implemented in INMOST::MatrixMul< variable, variable, Promote< variable, variable >::type >, INMOST::MatrixMul< variable, INMOST_DATA_REAL_TYPE, Promote< variable, INMOST_DATA_REAL_TYPE >::type >, INMOST::MatrixMul< INMOST_DATA_REAL_TYPE, variable, Promote< INMOST_DATA_REAL_TYPE, variable >::type >, INMOST::MatrixRepack< Var >, INMOST::MatrixConcatCols< Var >, INMOST::MatrixConcatRows< Var >, INMOST::MatrixTranspose< Var >, INMOST::BlockOfMatrix< Var >, INMOST::SubMatrix< Var >, INMOST::Matrix< Var, storage_type >, INMOST::Matrix< INMOST::Promote< INMOST::multivar_expression, INMOST_DATA_REAL_TYPE >::type >, INMOST::Matrix< VarR >, INMOST::Matrix< INMOST::Promote< INMOST_DATA_REAL_TYPE, INMOST::multivar_expression >::type >, INMOST::Matrix< INMOST_DATA_REAL_TYPE >, INMOST::Matrix< INMOST::Promote< INMOST::multivar_expression, INMOST::multivar_expression >::type >, and INMOST::SymmetricMatrix< Var, storage_type >.

◆ operator*=() [1/2]

template<typename Var >

template<typename typeB >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator*= ( const AbstractMatrixReadOnly< typeB > & B )

Multiply matrix with another matrix in-place.

Parameters

B	Another matrix to the right in multiplication.

Returns: Reference to current matrix.

◆ operator*=() [2/2]

template<typename Var >

template<typename typeB >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator*= ( typeB coef )

Multiply the matrix by the coefficient of the same type and store the result.

Parameters

coef	Coefficient.

Returns: Reference to the current matrix.

◆ operator+=() [1/2]

template<typename Var >

template<typename typeB >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator+= ( const AbstractMatrix< typeB > & other )

Add a matrix and store result in the current.

Parameters

other The matrix to be added.

Returns: Reference to the current matrix.

◆ operator+=() [2/2]

template<typename Var >

template<typename typeB >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator+= ( const AbstractMatrixReadOnly< typeB > & other )

Add a matrix and store result in the current.

Parameters

other The matrix to be added.

Returns: Reference to the current matrix.

◆ operator-=() [1/2]

template<typename Var >

template<typename typeB >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator-= ( const AbstractMatrix< typeB > & other )

Subtract a matrix and store result in the current.

Parameters

other The matrix to be subtracted.

Returns: Reference to the current matrix.

◆ operator-=() [2/2]

template<typename Var >

template<typename typeB >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator-= ( const AbstractMatrixReadOnly< typeB > & other )

Subtract a matrix and store result in the current.

Parameters

other The matrix to be subtracted.

Returns: Reference to the current matrix.

◆ operator/=()

template<typename Var >

template<typename typeB >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator/= ( typeB coef )

Divide the matrix by the coefficient of the same type and store the result.

Parameters

coef	Coefficient.

Returns: Reference to the current matrix.

◆ operator=() [1/3]

template<typename Var >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator= ( AbstractMatrix< Var > const & other )

inline

Assign matrix of the same type.

Parameters

other Another matrix of the same type.

Returns: Reference to matrix.

Definition at line 685 of file inmost_dense.h.

◆ operator=() [2/3]

template<typename Var >

template<typename typeB >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator= ( AbstractMatrixReadOnly< typeB > const & other )

inline

Assign matrix of another type.

Parameters

other Another matrix of different type.

Returns: Reference to matrix.

Definition at line 697 of file inmost_dense.h.

◆ operator=() [3/3]

template<typename Var >

AbstractMatrix& INMOST::AbstractMatrix< Var >::operator= ( Var const & b )

inline

Assign value to all entries of the matrix.

Parameters

b	Assigned value.

Returns: Reference to matrix.

Definition at line 708 of file inmost_dense.h.

◆ operator^() [1/2]

template<typename Var >

template<typename typeB >

Promote<Var, typeB>::type INMOST::AbstractMatrix< Var >::operator^ ( const AbstractMatrix< typeB > & other ) const

inline

Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix.

Parameters

other Provided matrix.

Returns: Dot product of two matrices.

Definition at line 910 of file inmost_dense.h.

◆ operator^() [2/2]

template<typename Var >

template<typename typeB >

Promote<Var, typeB>::type INMOST::AbstractMatrix< Var >::operator^ ( const AbstractMatrixReadOnly< typeB > & other ) const

inline

Computes dot product by summing up multiplication of entries with the same indices in the current and the provided matrix.

Parameters

other Provided matrix.

Returns: Dot product of two matrices.

Definition at line 919 of file inmost_dense.h.

◆ Print()

template<typename Var >

void INMOST::AbstractMatrix< Var >::Print	(	INMOST_DATA_REAL_TYPE	threshold = `1.0e-10`,
		std::ostream &	sout = `std::cout`
	)		const

inline

Output matrix to screen.

Does not output derivatices.

Parameters

threshold Elements smaller then the number are considered to be zero.

Definition at line 955 of file inmost_dense.h.

◆ Repack()

template<typename Var >

MatrixRepack<Var> INMOST::AbstractMatrix< Var >::Repack	(	enumerator	rows,
		enumerator	cols
	)

inline

Change representation of the matrix into matrix of another size.

Useful to change representation from matrix into vector and back. Replaces original number of columns and rows with a new one.

Returns: Matrix with same entries and provided number of rows and columns.

Definition at line 801 of file inmost_dense.h.

◆ Resize()

template<typename Var >

virtual void INMOST::AbstractMatrix< Var >::Resize	(	enumerator	rows,
		enumerator	cols
	)

pure virtual

Resize the matrix into different size.

Parameters

nrows	New number of rows.
ncols	New number of columns.

Implemented in INMOST::MatrixMul< variable, variable, Promote< variable, variable >::type >, INMOST::MatrixMul< variable, INMOST_DATA_REAL_TYPE, Promote< variable, INMOST_DATA_REAL_TYPE >::type >, INMOST::MatrixMul< INMOST_DATA_REAL_TYPE, variable, Promote< INMOST_DATA_REAL_TYPE, variable >::type >, INMOST::MatrixRepack< Var >, INMOST::MatrixConcatCols< Var >, INMOST::MatrixConcatRows< Var >, INMOST::MatrixTranspose< Var >, INMOST::BlockOfMatrix< Var >, INMOST::SubMatrix< Var >, INMOST::SymmetricMatrix< Var, storage_type >, INMOST::Matrix< Var, storage_type >, INMOST::Matrix< INMOST::Promote< INMOST::multivar_expression, INMOST_DATA_REAL_TYPE >::type >, INMOST::Matrix< VarR >, INMOST::Matrix< INMOST::Promote< INMOST_DATA_REAL_TYPE, INMOST::multivar_expression >::type >, INMOST::Matrix< INMOST_DATA_REAL_TYPE >, and INMOST::Matrix< INMOST::Promote< INMOST::multivar_expression, INMOST::multivar_expression >::type >.

◆ Trace()

template<typename Var >

Var INMOST::AbstractMatrix< Var >::Trace ( ) const

inline

Calculate sum of the diagonal elements of the matrix.

Returns: Trace of the matrix.

Definition at line 945 of file inmost_dense.h.

◆ Transform() [1/2]

template<typename Var >

template<typename typeB >

Matrix< typename Promote< Var, typeB >::type > INMOST::AbstractMatrix< Var >::Transform ( const AbstractMatrix< typeB > & other ) const

Transformation matrix from current vector to provided vector using shortest arc rotation.

Parameters

other Vector to transform to.

Returns: A sqaure (rotation) matrix that transforms current vector into right hand side vector.

Warning: Works only for 3x1 vectors.

Definition at line 3774 of file inmost_dense.h.

◆ Transform() [2/2]

template<typename Var >

template<typename typeB >

Matrix< typename Promote< Var, typeB >::type > INMOST::AbstractMatrix< Var >::Transform ( const AbstractMatrixReadOnly< typeB > & other ) const

Transformation matrix from current vector to provided vector using shortest arc rotation.

Parameters

other Vector to transform to.

Returns: A sqaure (rotation) matrix that transforms current vector into right hand side vector.

Warning: Works only for 3x1 vectors.

Definition at line 3812 of file inmost_dense.h.

◆ Transpose()

template<typename Var >

MatrixTranspose<Var> INMOST::AbstractMatrix< Var >::Transpose ( )

inline

Transpose the current matrix with access to elements.

Returns: Transposed matrix.

Definition at line 796 of file inmost_dense.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

template<typename Var> class INMOST::AbstractMatrix< Var >

Member Function Documentation

◆ BlockOf()

◆ CheckInfs()

◆ CheckNans()

◆ CheckNansInfs()

◆ ConcatCols()

◆ ConcatRows()

◆ CrossProduct() [1/2]

◆ CrossProduct() [2/2]

◆ DotProduct() [1/2]

◆ DotProduct() [2/2]

◆ FrobeniusNorm()

◆ get()

◆ isSymmetric()

◆ MaxNorm()

◆ MPT()

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+=() [1/2]

◆ operator+=() [2/2]

◆ operator-=() [1/2]

◆ operator-=() [2/2]

◆ operator/=()

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ operator^() [1/2]

◆ operator^() [2/2]

◆ Print()

◆ Repack()

◆ Resize()

◆ Trace()

◆ Transform() [1/2]

◆ Transform() [2/2]

◆ Transpose()

template<typename Var>
class INMOST::AbstractMatrix< Var >
